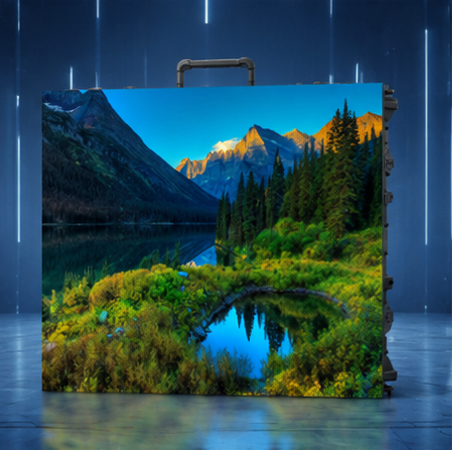

The VCK (576×576) Series is a high-performance rental LED display designed for both indoor and outdoor applications. Engineered with an ultra-slim cabinet structure, lightweight design, and advanced display technology, the VCK Series delivers outstanding visual performance, quick installation, and reliable operation for modern rental and fixed display projects.

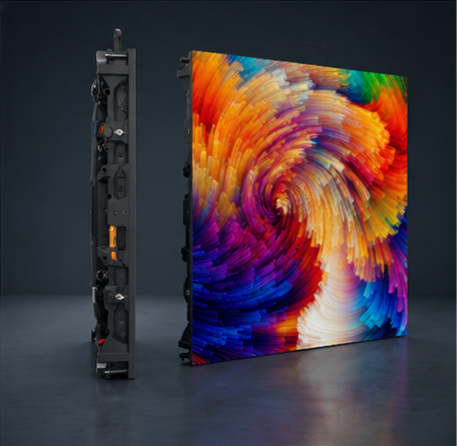

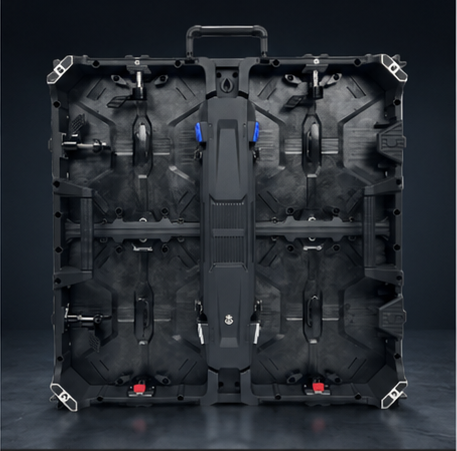

The VCK (576×576) Rental LED Display is developed for professional visual applications requiring flexibility, portability, and superior display quality. With its lightweight die-cast cabinet design and modular structure, the display enables fast installation and efficient transportation for rental environments.

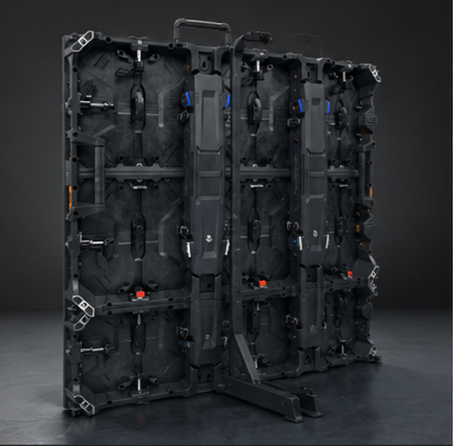

The cabinet supports both concave and convex curved installations, allowing creative stage designs and immersive display experiences. Advanced LED processing technology ensures vivid colors, smooth playback, and high-definition image quality for live events and commercial displays.

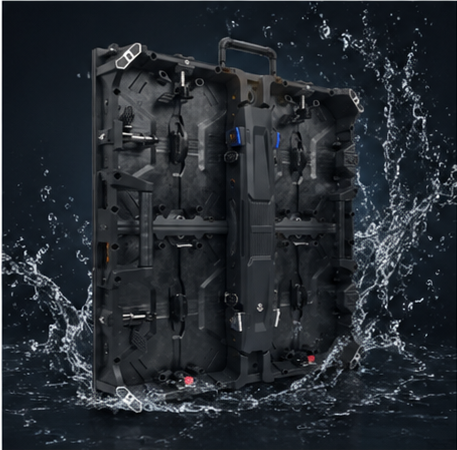

Its professional-grade structure provides excellent durability, heat dissipation, and stable long-term operation in both indoor and outdoor environments.
| Pixel Pitch | 2.57mm | 3.6mm | 3.6mm(Outdoor) | 4.8mm(Outdoor) |
|---|---|---|---|---|
| Led Configuration | SMD1515 | SMD2020 | SMD1921 | SMD1921 |
| Brightness | 1000nits | 1000nits | 4500nits | 4500nits |
| Viewing Angle | 170°/ 160° | |||
| Scan Mode | 1/16 | 1/28 | 1/16 | 1/13 |
| Refresh Rate | 1920/3840/7680Hz | |||
| Processing | 14/16 bits | |||
| Module size | 288mm x 288mm | |||
| Panel Size | 576mmx576mmx75mm(WxHxD) | |||
| Panel Weight | 9.8kg/pcs | |||
| Input Voltage | AC100~240V 50/60 HZ | |||
| Power consumption (Avg) | 160W/sqm | 160W/sqm | 180W/sqm | 180W/sqm |
| Power consumption (Max) | 600W/sqm | |||
| Working Temperature | -20°C~60°C | |||
| IP Rating | IP42/IP31 | |||
| Lifespan | 100000Hrs | |||
| Warranty | 24months full warranty + 12month free maintenance | |||
