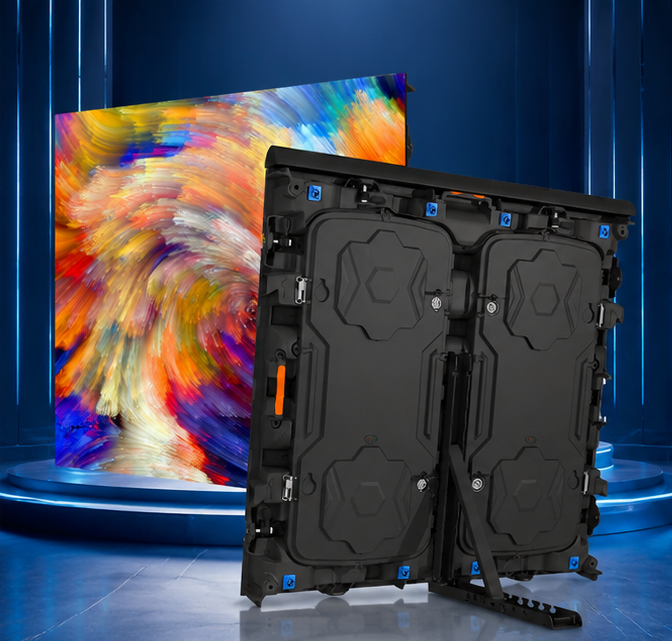

Maxtell Mf 960x960 Led Display

MF (960×960)

Outdoor Fine Pixel LED Display

The MF (960×960) Series is designed for high-quality outdoor display applications where durability, brightness, and seamless visual performance are essential. Built with precision die-cast aluminum cabinets and advanced LED technology, this display solution delivers stunning image clarity, smooth playback, and long-term reliability even in demanding outdoor environments.

Product Highlights

Outdoor High Brightness Performance
Waterproof IP65 Protection

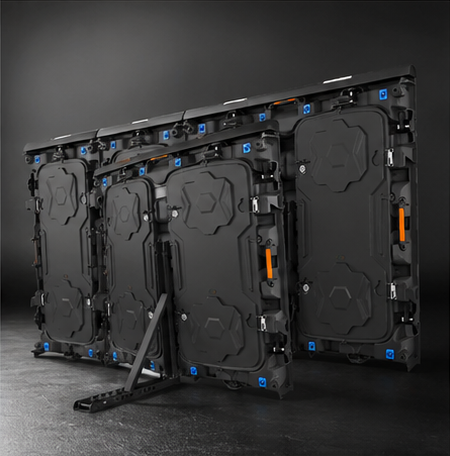

Die-Cast Aluminum Cabinet
Fast Installation & Easy Maintenance
Seamless Cabinet Connection
Wide Viewing Angle

Request Quote Download Brochure

Product Description

The MF (960×960) Outdoor LED Display is engineered to deliver powerful visual communication for modern outdoor environments. With advanced SMD LED technology and premium-grade cabinet construction, the display produces vibrant colors, excellent contrast, and high-definition visual performance.

The ultra-strong die-cast aluminum frame provides structural stability while maintaining lightweight handling for easier transportation and installation. The high refresh rate ensures smooth video playback without flickering, making the display ideal for live broadcasting, advertising, stage events, sports venues, and public information systems.

Its IP65-rated protection safeguards the display against dust, rain, moisture, and harsh weather conditions, ensuring reliable outdoor operation throughout the year.

WHY CHOOSE MF SERIES LED DISPLAYS?

Its modular cabinet structure supports quick installation, easy maintenance, and flexible configuration for fixed installations, advertising displays, stadiums, live events, retail branding, transportation hubs, and commercial digital signage.

Superior Outdoor Visibility

High brightness output ensures clear visibility even under direct sunlight.

Rugged Outdoor Design

Designed for harsh weather environments with waterproof and dustproof protection.

Precision Cabinet Engineering

Die-cast aluminum cabinet structure provides perfect alignment and seamless screen appearance.

Smooth Video Playback

High refresh rate technology delivers flicker-free and stable visual performance.

Easy Maintenance Access

The cabinet design supports fast servicing and simplified maintenance operations.

Flexible Installation Options

Supports hanging, wall-mounted, fixed, and rental installation requirements.

Technical Specifications

Model	P2.5	P3	P4	P5	P6.667	P8	P10
pitch	2.5mm	3mm	4mm	5mm	6.67mm	8mm	10mm
LED lamp	S M D1415	S M D1415	S M D1921	S M D2727	S M D2727	S M D2727	S M D3535
Density(dots/㎡)	160000	111111	62500	40000	22500	15625	10000
Cabinet resolution	384×384	320 ×320	240×240	192×192	144×144	120x120	120x120
Cabinet weight(KG)	30
Scan	1/32	1/32	1/16	1/8	1/6	1/2	1/2
Viewing angle	H :140° , V:120°
Refresh rate	≥1280hz	≥1920hz	≥1920hz	≥2880hz	≥2880hz	≥3840hz	≥3840hz
Brightness	4500	5000	5000	6000	6000	6000	7000
Power consumption	800W/350W
IP protection	IP65
Cabinet size	960mm×960mm
Grey level	12-14bit
Input voltage	AC220V/50 H z
MTBF	10000 H
Lifespan	≥100000 H
Working Temp.	-20℃+45℃
Working Humidity	10%60%R H

Recommended Applications

Hanging Installation

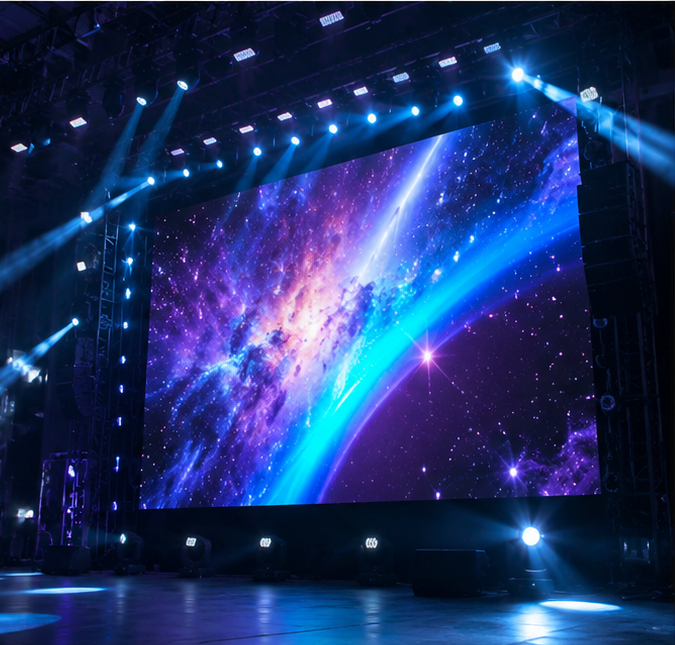

Suitable for concerts, stage events, exhibitions, and suspended outdoor display systems.

Fixed Outdoor Installation

Ideal for permanent advertising displays, building facades, retail branding, and public information systems.

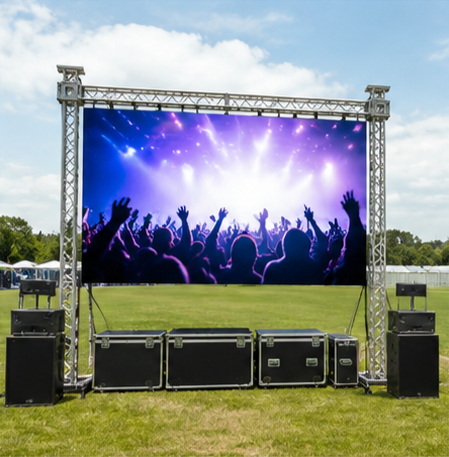

Rental Display Setup

Quick-lock cabinet structure enables fast assembly and dismantling for temporary event applications.

Industry Used

High Color Accuracy

Wide Viewing Angles

Sharp Image Clarity

Stable Power Distribution

Seamless Cabinet Connection

Excellent Heat Dissipation
