Advanced Fine Pixel LED Display for Professional Indoor Applications
The GOB (640×480) Series is a next-generation indoor LED display solution engineered for ultra-fine pixel visual performance, durability, and seamless viewing experiences. Built with advanced GOB (Glue on Board) protection technology and premium SMD LED components, the display delivers exceptional image clarity, enhanced protection, and long-term operational reliability.
The GOB (640×480) LED Display is designed to deliver high-definition indoor visual experiences with enhanced durability and precision engineering. Using advanced Glue-on-Board (GOB) technology, the display provides additional protection against dust, moisture, collision, and static electricity while maintaining exceptional image quality.

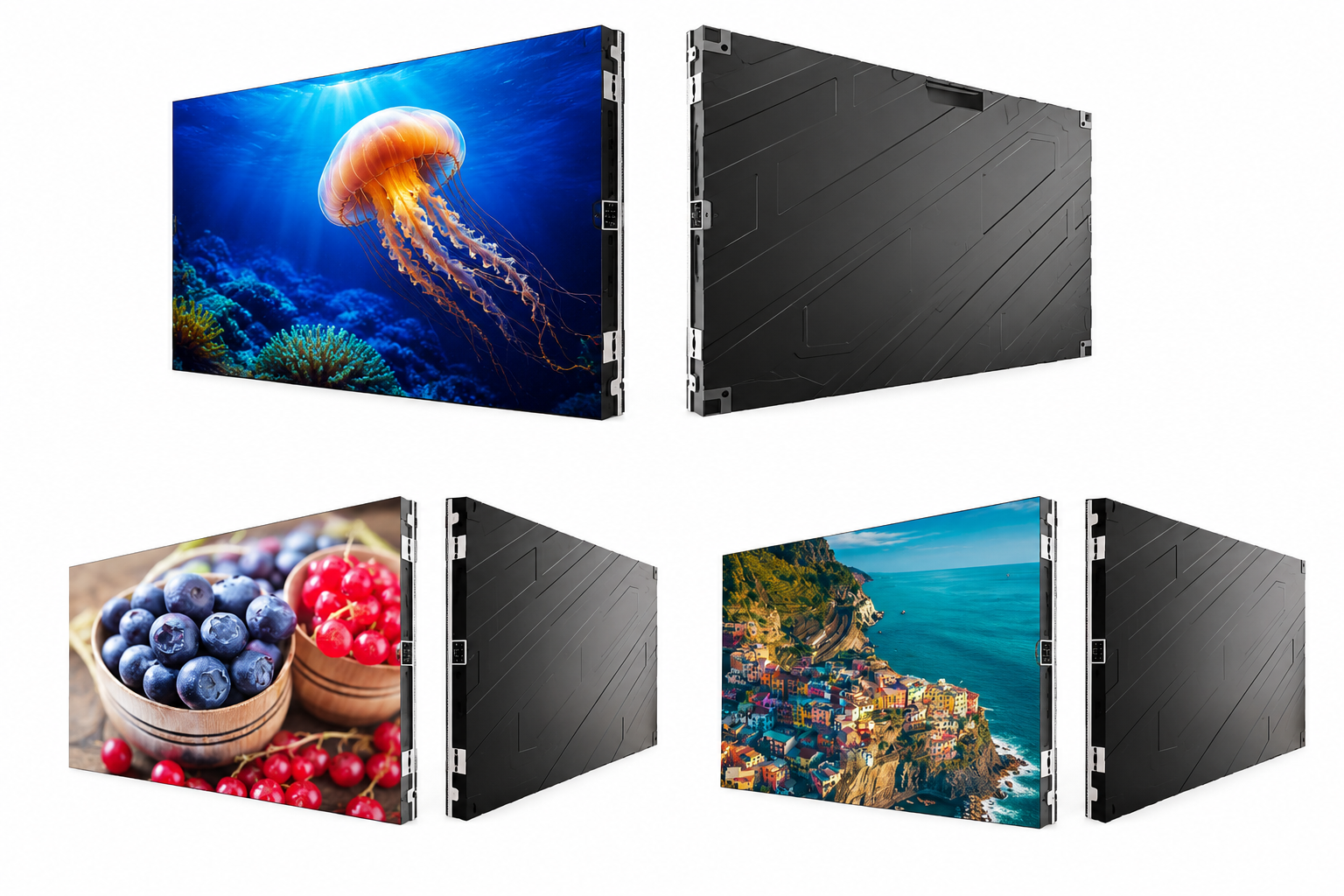

Its ultra-fine pixel pitch options produce sharp visuals, vibrant colors, and smooth content playback for premium commercial and professional display environments. The lightweight cabinet structure ensures easy installation and maintenance while maintaining excellent structural stability.
With HDR support, high grayscale processing, and wide viewing angles, the GOB Series creates immersive visual performance suitable for high-end indoor applications.
| Parameter | MX012 | MX015 | MX018 | MX020 | MX025 | MX040 |
|---|---|---|---|---|---|---|
| Pitch (Indoor) | 1.25mm | 1.538mm | 1.86mm | 2mm | 2.5mm | 4mm |
| Packing Technology | SMD 1010 GOB | SMD 1212/1010 GOB | SMD 1515/1212/1010 GOB | SMD 1515/2020 GOB | SMD 2121 GOB | SMD 2121/2020 GOB |
| Cabinet Size | 640x480mm | |||||
| Cabinet Resolutions | 512x384 | 416x312 | 344x256 | 320x240 | 256x192 | 160x120 |
| Cabinet Weight | 7.5kg | |||||
| Module Resolution | 256 x 128 | 208 x 104 | 172 x 86 | 160 x 80 | 128 x 64 | 80 x 40 |
| Module Dimension (mm*mm) | 320 x 160mm | |||||
| Pixel Density (Pixel/m²) | 640000 | 422500 | 288906 | 250000 | 160000 | 62500 |
| IP Grade | IP–30 | |||||
| Life Typical Value (HRS) | 100000H | |||||
| Contrast Ratio | 5000:1 | 4500:1 | 5000:1 | 4000:01 | 4000:1 | 5000:1 |
| Standard Color Temperature | 3000~38000 Ajustable | 3000~38001 Ajustable | 3000~38002 Ajustable | 3000~38003 Ajustable | 3000~38004 Ajustable | 3000~38005 Ajustable |
| Maintenance | Front | |||||
| Processing Depth | 12~14 Bit | |||||
| Single Module Curent (A) | 5 | 4 | 4 | 4 | 2,6 | 4 |
| HDR Compatible | HDR10/HDR+ /HDR10 Pro | |||||
| Brightness of White Balance (nit) | 600-800 cd/m2 | 700-900 cd/m2 | 700-900 cd/m2 | 800-1000 cd/m2 | 900/1200 cd/m2 | 1000-1500 cd/m2 |
| Horizontal/Vertical Viewing Angle | ≥140° | |||||
| Max Power Consumption (W/m²) | 700-900 | 600-800 | 500-700 | 450-600 | 350-500 | 250-400 |
| Average Power Consumption (W/m²) | 250-350 | 200-300 | 180-250 | 150-220 | 120-180 | 80-150 |
| Deviation of LED Luminance center | <3% | |||||
| Power Supply | TBD | |||||
| Sweep Mode (S) | 64 | 52 | 43 | 40 | 32 | 26 |
| Refresh Rate (Hz) | 3840 | |||||
| Frame Rate | 50&60 | |||||
| Drive Mode | Constant-current Drive 64S | Constant-current Drive 52S | Constant-current Drive 43S | Constant-current Drive 40S | Constant-current Drive 64S | Constant-current Drive 20S |
| Gray Scale (bit) | 14~16 | |||||
| Color Temperature | 3000-10,000K Adjustable | |||||
| Working Temperature(°C) | 0~40 | |||||
| Operating Temperature(RH) | -10°C to +60°C | |||||
| Storage Temperature(°C) | -10~50 | |||||
| Operation Humidity(RH) | 10-90% RH | |||||
| Storage Humidity(RH) | 10~85 | |||||
| Drive IC | 2038 | |||||
| Unit Area(m²) | 0.0512 | |||||
| Brightness Uniformity | ≥97% | |||||
| Power Supply Requirements (V) | 5V | |||||
