High Performance COB Solution for Indoor Screen

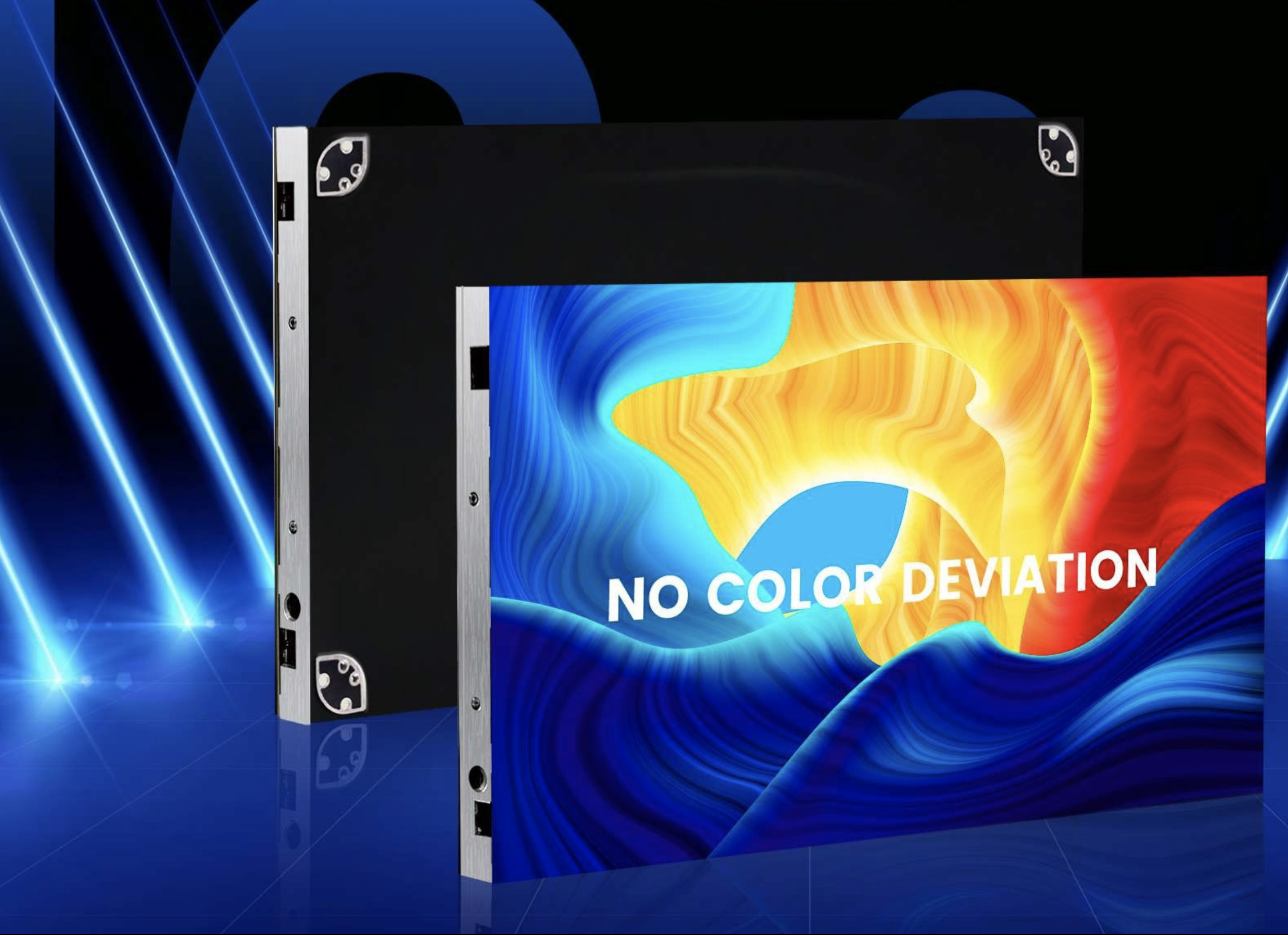

Unlike traditional LED displays, Maxtell’s MXCOB Series employs advanced Chip-on-Board (COB) packaging technology, which directly attaches LED chips onto the PCB board. This innovative approach enables significantly smaller pixel pitches — available in P-0.7, 0.9, 1.25mm, 1.56mm, and 1.8 mm — resulting in higher pixel density. The absence of plastic housing further enhances the display’s reliability and performance, providing improved color accuracy, greater brightness, and a smooth, uniform surface for delicate visual applications. Designed specifically for indoor use, the MXCOB Series is an ideal choice for:
The FP Ultra 1.2 represents the pinnacle of LED display technology, engineered for indoor environments where visual excellence is non-negotiable. With its 1.2mm pixel pitch, this display delivers stunning clarity and detail that brings your content to life.
Built with enterprise-grade components and rigorous quality standards, the FP Ultra 1.2ensures reliable 24/7 operation. The 600 nits brightness rating provides exceptional visibility in any lighting condition, while the 3840 Hz refresh rate guarantees smooth, flicker-free video playback perfect for both static content and dynamic media.

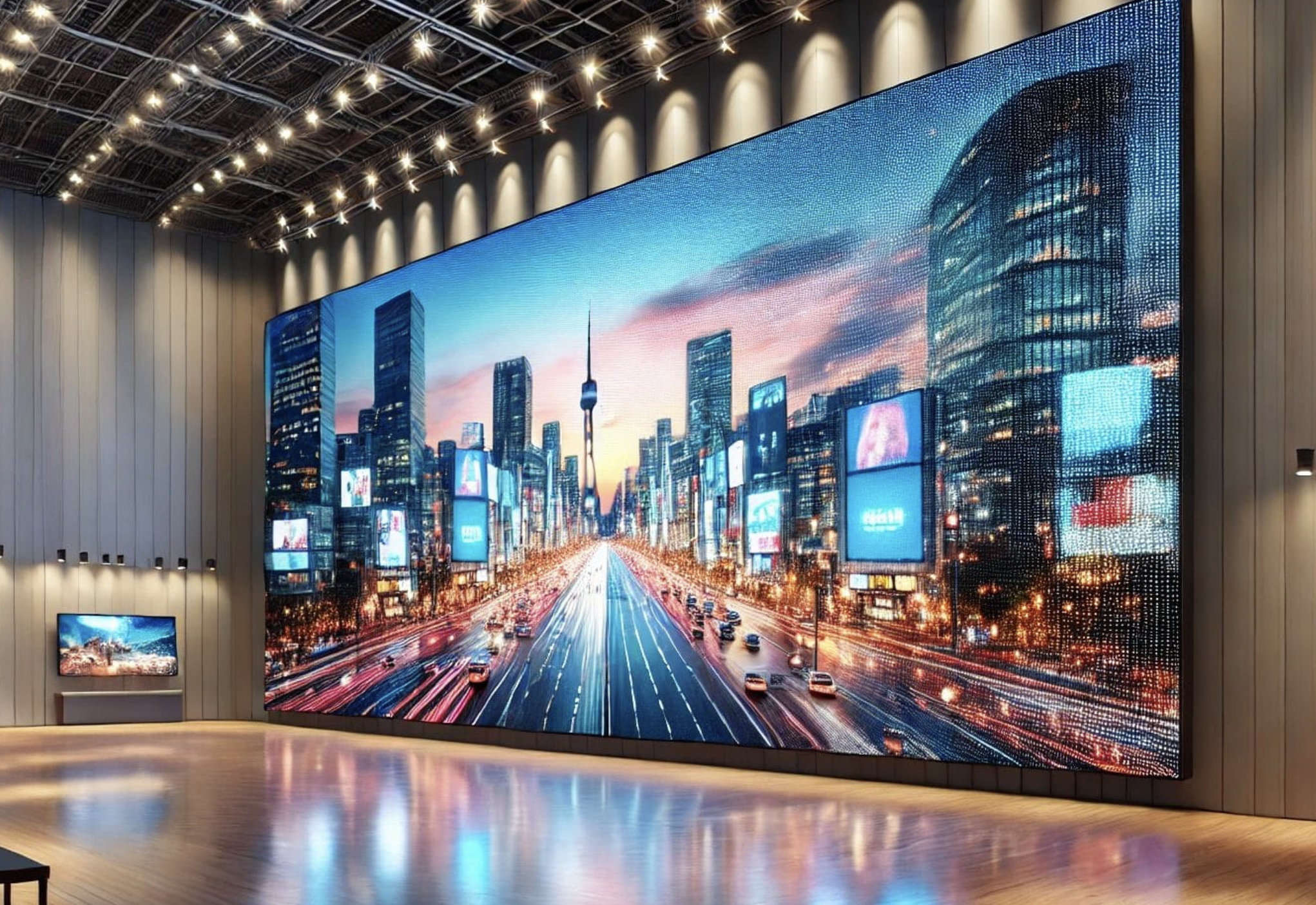

Whether you’re creating an immersive boardroom experience, a commanding control center display, or a captivating retail installation, the FP Ultra 1.2 delivers the performance and reliability your project demands. Our expert team handles every aspect from design consultation to professional installation and ongoing support.
| Specification | P0.78 | P0.93 | P1.25 | P1.5625 | P1.875 |
|---|---|---|---|---|---|
| Panel Resolution | 768x432 | 640 x 360 | 480 x 270 | 384 x 216 | 320 x 180 |
| Panel Technology | Full flip-chip COB | ||||
| Cabinet Size (W × H × Dmm) | 600 x 337.5 x 31 mm | ||||
| Module Size | 320x160mm | ||||
| Module Resolution | 192x216 | 160x180 | 120x135 | 96x108 | 80x90 |
| LED Configuration | COB | ||||
| Panel Density | 1638400dot/m2 | 1137777dot/m2 | 640000dot/m2 | 410900dot/m2 | 284444dot/m2 |
| Supported Hanging or not | Yes | ||||
| Cabinet weight | 4kg | 4kg Small 8kg (Big) | 4kg Small 8kg (Big) | 4kg Small 8kg (Big) | 8 Kg(Big) |
| Surface Hardness | 4H | ||||
| Surface Treatment | Mattel black finish | ||||
| Brightness(nits) | 600 | 600 | 600 | 600 | 500 |
| Processing Depth: | 18bit | ||||
| Contrast Ratio | 10000:1 (Condition without lighting ) | ||||
| Colour Temperature(K) | 3000 ~ 9300 | ||||
| Frame Rate(Hz) | 9300K (Standard) | ||||
| Refresh Rate(Hz) | 3840Hz | ||||
| Working Voltage | AC:100V~240V,50/60Hz | ||||
| Power Consumption Max(W/m2) | 395W/m2 | 370 | 320 | 350 | 325 |
| Power Consumption AVG (W/m2) | 130W/m2 | 125 | 110 | 120 | 110 |
| Viewing Distance | >1m | >1.5m | >2m | >2m | >2m |
| Viewing Angle(H./V.) | 170°/170° | ||||
| Lifetime(Hours) | 100000 | ||||
| Operating Temp(°C) | -10 ~ +50 | ||||
| Humidity Range(%RH) | 10 ~ 80 | ||||
| Colour Grade | >16.7M | >16.7M | >16.7M | >16.7M | >16.7M |
| Scanning Method | 1/24 Scanning | 1/24 Scanning | 1/24 Scanning | 1/21 Scanning | 1/21 Scanning |
| working Environment | −10 ℃ ~45 ℃ | −10 ℃ ~45 ℃ | −10 ℃ ~45 ℃ ±10% | −10 ℃ ~45 ℃ ±10% | −10 ℃ ~45 ℃ ±10% |

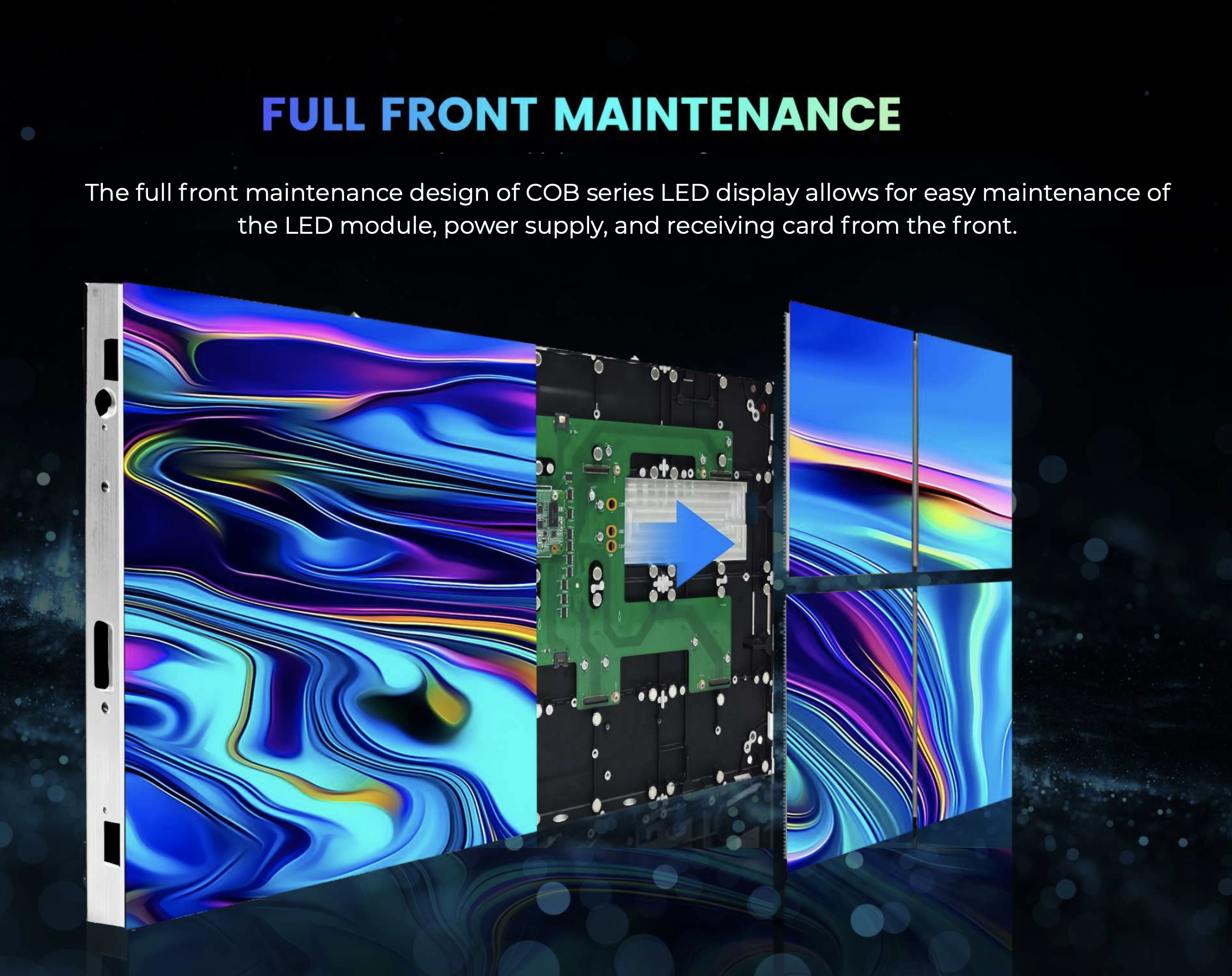

| Maintenance Way | Front | ||||
| IP Rating | Front IP63,Rear IP53 | ||||
| IP Level of PCB Surface | IP54 (Washable by clean water) | ||||
| Storage Temp(°C) | −20°C±60°C/10%RH-90%RH | ||||
| Applications | Indoor | ||||
| Frame Material | Die-casting Aluminium | ||||
| Certifications | CE/FCC/ROHS/ISO/BIS/NABL | ||||
